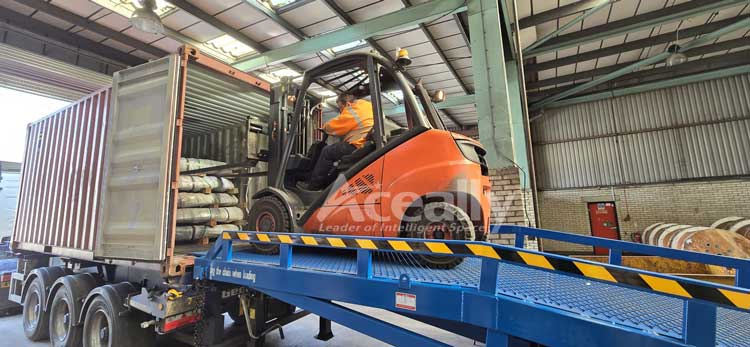

We export a mobile dock ramp to UK last season, Our customers use it to loading and unloading goods from containers. It not only ensures daily goods loading and unloading, but also greatly improves loading and unloading efficiency.
Project type: 15T Mobile dock ramp
Project date: October 2023
Location: FELIXSTOWE, UK
Project details:
1 | Overall size | 11300mm（L）*2200mm（W）*1100mm（H） |
2 | Platform size | Slope length：7150mm（L）Platform plate length：3000mm（L）The tail plate length：750mm The tongue plate length：400mm Width：2200mm Steel plate thickness:5mm Steel mesh thickness:8mm |
3 | Load | 15T |
4 | Distribution power | Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs |
5 | Adjustable range | 1100-1800mm(H) |
6 | Guardrail high | 300mm（100*50*4mm rectangular pipe） |
7 | Main beam | 200*100*5mm rectangular pipeTotal 5 main beams |
8 | Vice beam | 120*60*5mm |
9 | Hydraulic cylinder | Φ80*Φ45（2 pcs） |
10 | Hydraulic oil pipe | 32Pma |
11 | Solid tire | 700-9 |
12 | Container connectivity | The bridge body is welded with a hook and fixed with a steel chain |
13 | Paint Color | Generally blue(adjustable); spray-paint |
14 | Overall weight | ±4000kg |
Our mobile dock ramps have very good quality, Although the rated loading capacity is 15 tons, for the sake of safety, in fact, the maximum loading capacity we design is always 30% greater than the rated loading capacity. And we have got CE and ISO certificates etc. and have been exported to many countries, gaining unanimous praise from customers.
This time in cooperation with the customer, we installed additional side tractors on the mobile dock ramps according to the customer’s requirements.
Although there were some minor incidents after the customer received the goods, it did not affect the customer’s satisfaction and love for our products. To this end, customers also showcase our products and company brand on social media platforms such as LinkedIn. We are very grateful for the kindness of our customers
All in all, it was a very pleasant experience working with the client and I look forward to our long-term cooperation in the future.
